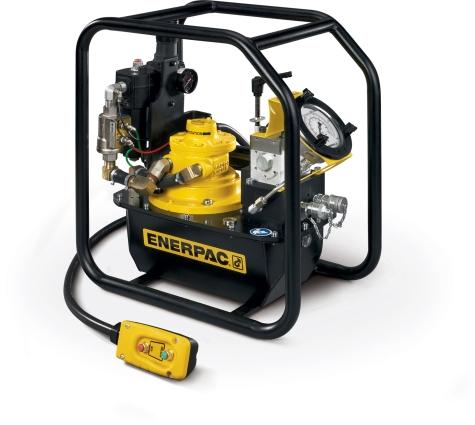

ENERPAC ZA4204TX-QR - PUMP, AIR, TORQUE WRENCH VA42Q 4L WITH ROLL BARS

Enerpac ZA4204TX-QR Description:
Series : ZA4T
Product Lines : Bolting Tools
• The ZA4-Series pump is best suited to power medium to large size torque wrenches. Patent-pending Z-Class technology provides high by-pass pressures for increased productivity. Its high power-toweight ratio and compact design make it ideal for applications which require easy transport of the pump.
• Two-speed operation and high by-pass pressure reduces cycle time for improved productivity
• Glycerin filled pressure gauge with transparent overlays in Ft.lbs and Nm for Enerpac torque wrenches provide a quick torque reference
• Regulator-Filter-Lubricator with removable bowls and auto drain is standard
• Ergonomic pendant allows remote operation up to 20 feet
• Valve technology reduces oil operating temperatures and withstands contaminants to increase pump reliability
• The ZA-series pumps are tested and certified according to the Equipment Directive 94 / 9 / EC “ATEX Directive”. The explosion protection is for equipment group II, equipment category 2 (hazardous area zone 1), in gas and/or dust atmospheres. The ZA-series pumps are marked with: Ex II 2 GD ck T4.

Enerpac ZA4204TX-QR Specifications:
• Maximum Operating Pressure (bar): 700
• For Use With Torque Wrenches: For all S- and W-Series (X-Edition)
• Reservoir Capacity (cm3): 2700
• Usable Oil Capacity (litres): 2,7
• Maximum Flow at Rated Pressure: 80 in3/min
• Output Flow Rate at 7 bar (l/min): 11,5
• Output Flow Rate at 50 bar (l/min): 8,8
• Output Flow Rate at 350 bar (l/min): 1,2
• Output Flow Rate at 700 bar (l/min): 1,0
• Air Pressure Range (bar): 4,0 - 6,9
• Air Consumption (l/min): 600 - 2840
• Relief Valve Adjustment Range (bar): 124 - 700
• Weight (kg): 46
