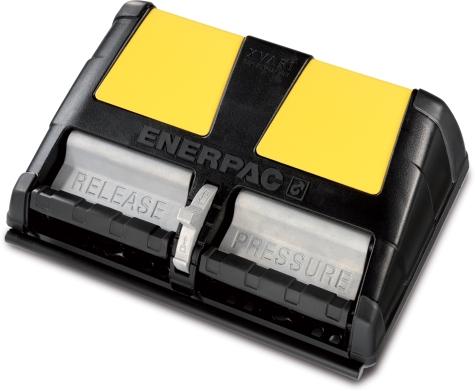

ENERPAC XA-11 - PUMP, AIR DRIVEN, S/A, 1 L

Enerpac XA11 Description:
Series : XA
Product Lines : Industrial Tools
• Higher oil flow for increased productivity
• Variable oil flow and fine metering for precise control
• Closed hydraulic system prevents contamination and allows pump usage in any position
• Pedal lock function for retract position
• External adjustable pressure setting valve
• ATEX Certified.* Includes ground screw for expolosion protection

Enerpac XA11 Specifications:
• Maximum Operating Pressure (bar): 700
• Cylinder Compatability: Single-acting
• Reservoir Capacity (cm3): 1000
• Usable Oil Capacity (litres): 1,0
• Maximum Flow at Rated Pressure: 15 in3/min
• Output Flow Rate No Load (l/min): 2,0
• Output Flow Rate Load (l/min): 0,25
• Valve Function: Advance / Hold / Retract
• Valve Operation: Manual
• Valve Type: 3-way, 3-position
• Air Pressure Range (bar): 2,1 - 8,6
• Air Consumption (l/min): 283 - 991
• Weight (kg): 8,6

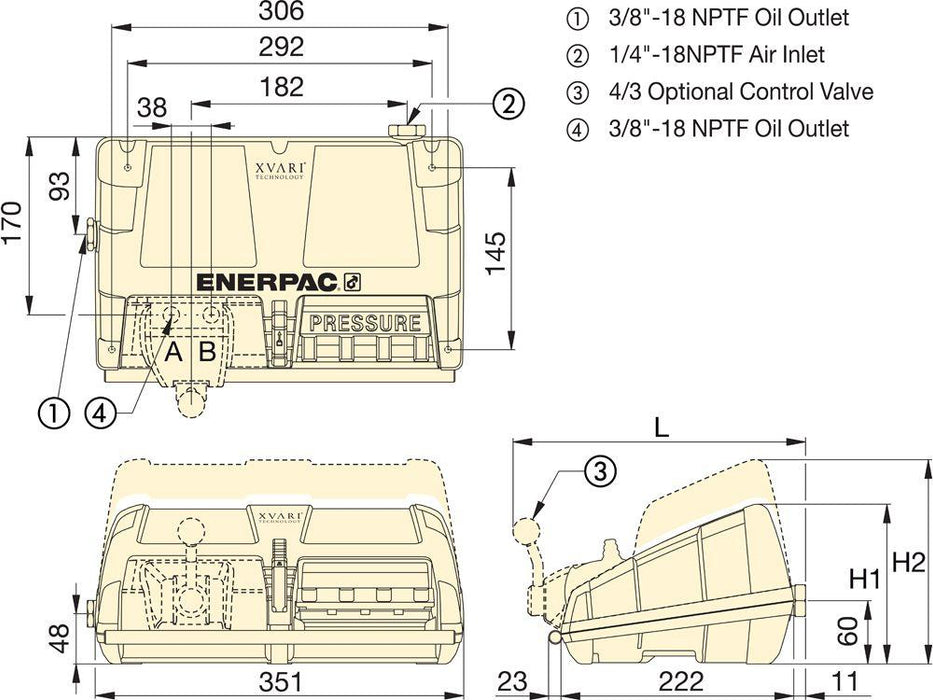

Enerpac XA11 Dimensions:
• Dimension H1 (mm): 152
