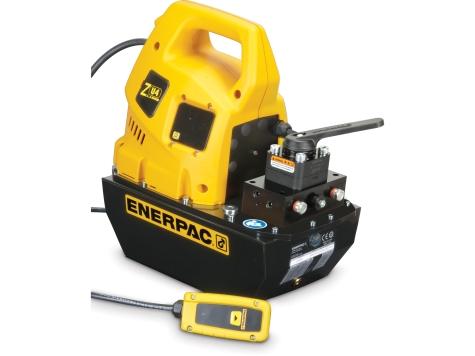

ENERPAC ZU4420MB - PUMP, ELEC. UNIVERSAL, VM43 STD 115V 20L MANUAL

Enerpac ZU4420MB Description:
Series : ZU
Product Lines : Industrial Tools
• Patented Z-Class pump technology provides high by-pass pressures for increased productivity—important in applications using long hose runs and high pressure-drop circuits, like heavy lifting or certain double-acting tools. Enerpac ZU4 Hydraulic Pumps are built to power small to large-sized cylinders or hydraulic tools, or wherever highspeed, intermittent duty, remote hydraulic power is needed.
• Features Z-Class high-efficiency pump design; higher oil flow and bypass pressure, cooler running and requires 18% less current draw than comparable pumps
• Powerful 1.7 hp universal electric motor provides high power-to-weight ratio and excellent low-voltage operating characteristics
• High-strength, molded composite shroud protects motor and electronics, while providing an ergonomic, non-conductive handle for easy transport
• Low-voltage pendant provides additional safety for the operator (remote control units)
• Standard Electrical:
- For applications that do not require digital display

Enerpac ZU4420MB Specifications:
• Cylinder Compatability: Double-acting
• Reservoir Capacity (cm3): 20000
• Usable Oil Capacity (litres): 20,0
• Maximum Flow at Rated Pressure: 60 in3/min
• Output Flow Rate at 7 bar (l/min): 11,5
• Output Flow Rate at 50 bar (l/min): 8,8
• Output Flow Rate at 350 bar (l/min): 1,2
• Output Flow Rate at 700 bar (l/min): 1,0
• Motor Size (hp): 1.7
• Valve Function: Advance / Hold / Retract
• Valve Operation: Manual
• Valve Type: 4-way, 3-position, Tandem Center
• Valve Model: VM43
• Pump Control: Manual
• Motor Electrical Specification: 115 V, 1 Ph, 50/60 Hz
• Sound Level (dBa): 85 - 90
• Relief Valve Adjustment Range (bar): 140 - 700
• Weight (kg): 50

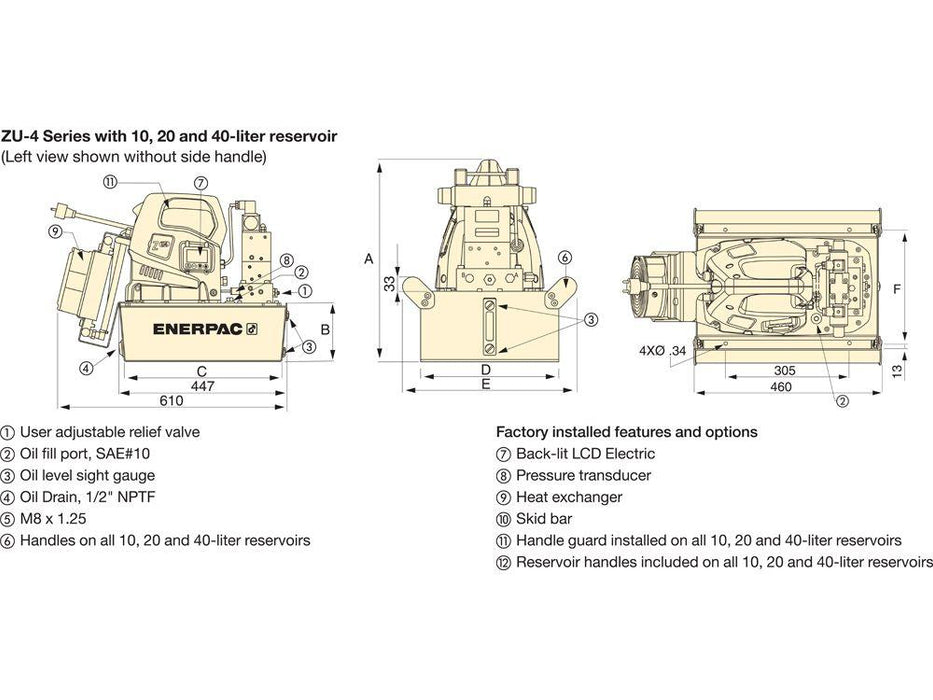

Enerpac ZU4420MB Dimensions:
• Dimension A (mm): 465
• Dimension B (mm): 180
• Dimension C (mm): 413
• Dimension D (mm): 422
• Dimension E (mm): 500
• Dimension F (mm): 396
