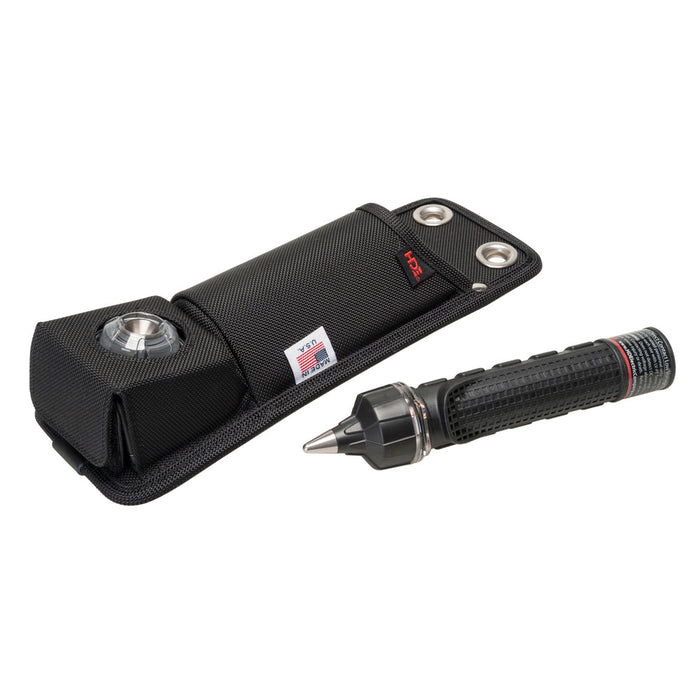

STRAY VOLTAGE DETECTOR KIT - LV-5/K01

INCLUDES:
• (1) Stray Voltage Detector, 5-600VAC
• (1) LV-HS Holster for LV-5 and LV-PT Tester
• LV-PT Stray Voltage Detector Proof Tester

FEATURES:
• Low threshold voltage sensing design picks up voltages from 5VAC to 600VAC with direct contact and above 600VAC at a distance
• Ultra bright, long-lasting red LED indicates when voltage is present
• Detector is always on, ready to use and operates on two AA lithium or alkaline batteries
• Rugged, utility-grade design is waterproof
• Tester integrated into the holster provides a visual indication of the test. Supplies a low voltage AC signal for testing before and after use
• Optional Extension Handle extends the LV-5 reach
• Optional Ground Shield used in areas where energized conductors are present and interfere with normal voltage tests

SPECIFICATIONS:
• DIMENSIONS: 10.5 in. L x 3.8 in.W x 2.3 in. H (26.7 cm x 9.7 cm x 5.8 cm)
• WEIGHT: 1.25 lb (570 g)
• BATTERY: LV-5 Detector: 2 x AA alkaline ANSI-15A, IEC-LR6 or lithium ANSI 15-LF, IEC-FR6 LV-PT; Tester: 9V alkaline ANSI 1604A, IEC 6LR61 or 9V lithium ANSI-1604LC
• THRESHOLD DETECTION VOLTAGE: 5VAC, 50/60Hz Nominal, capacitively coupled
• MAXIMUM APPLIED VOLTAGE: 600VAC
• ENVIRONMENTAL CONDITIONS: Indoor and outdoor use
• OPERATINGTEMPERATURE: -20°F to +140°F (-29°C to +60°C)
• HUMIDITY: 95% to +60°C (non condensing)
• ALTITUDE: Up to 6,566 ft. (2000M)
