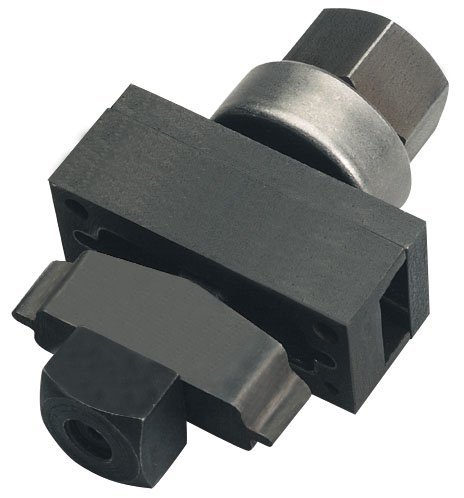

PUNCH UNIT-CONNECTOR 25 PIN RS-232 - RS232

by GREENLEE

• Cut-out and mounting slots are punched in one operation
• Drill only one 7/16 IN (11.1 mm) pilot hole. (use with Kwik Stepper® step bits.)
• Fast, accurate panel punching with no sawing or filing required
• Universal size punches for front or back mount of TRW Cinch and ITT Cannon-type or equivalent connectors in 9, 15, 25, 37 or 50-pin configurations
• U.S. Patent No. 4,899,447
• Capacity :
o 16 GA (1.500 MM) Mild Steel
o 10 GA (3.500 MM) Aluminum
• No. Of Pins : 25
• Operation Type :
o Manual with Wrench
o Quick Draw® And Quick Draw 90® Hydraulic Drivers, Battery Driver, Ram And Pump Hydraulic Drivers Aluminum
• Replacement Part : 34418 Punch, 35198 Die Unit, 34421 Draw Stud, 04638 Square Counter Nut, 34733 Drive Nut
• Size : 1.655 IN X 1.853 IN X 0.469 IN (42.000 MM X 47.100 MM X 11.900 MM)
• Type : Electronic Connector Panel
• Weight : 2.000 LB (0.910 KG)
